Products - Package for oil&gas offshore

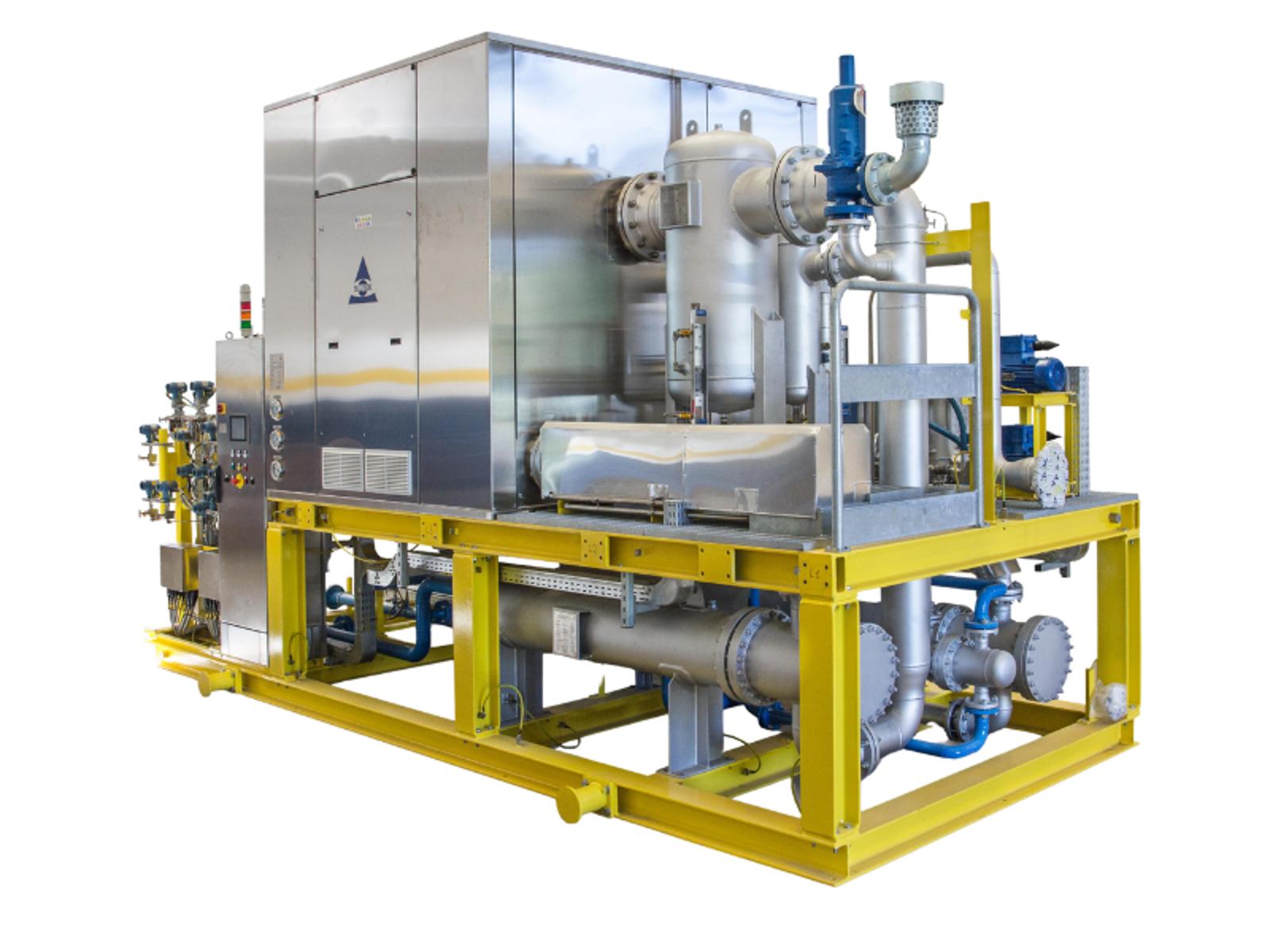

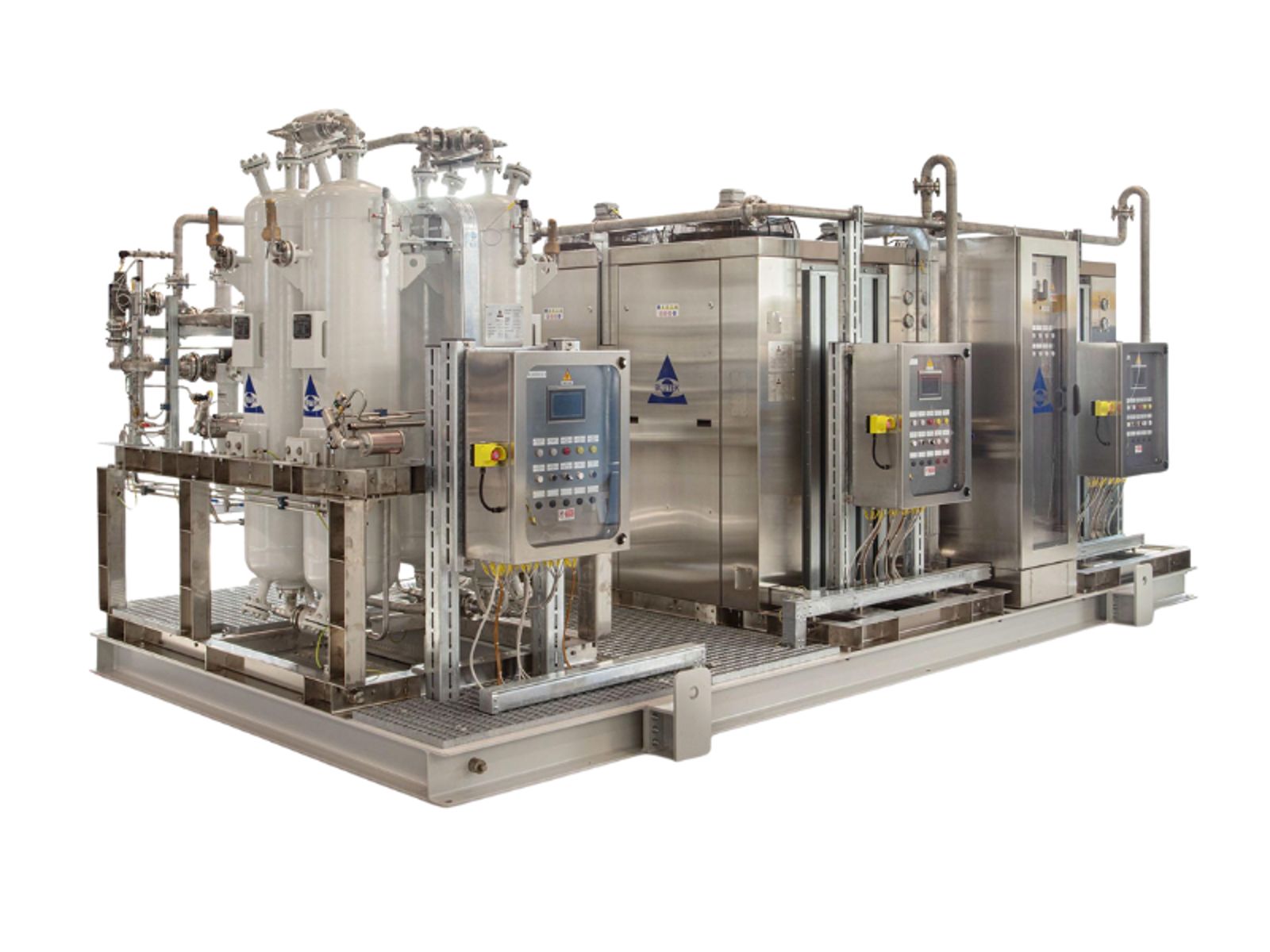

Instrument air skid packages

Totally engineered skid mounted turnkey instrument air package with compressors, dryers, filtration system, air receivers, nitrogen generators, manufactured in compliance with the main International Standards suitable for the application in the worst environment conditions.

Layout: skid with baseframe and 4 points for lifting, containerized execution with air conditioning system or winterization.


ENGINEERED SKID PACKAGES MAY INCLUDE:

  • Screw compressors: lubricated/oil-free dry – water/air cooled – fixed/variable speed, with electric LV-MV motor/diesel engine
  • Dryers: Adbsorption, heatless/heated/HOC / membrane / refrigerated
  • Nitrogen generators: membrane / PSA
  • Air receivers
  • Dedicated lifting equipment

SUITABLE FOR:

  • Hazardous area (Zone 1 / 2 or Class 1 div. 2)
  • Extreme high and/or low ambient temperatures

MAIN FEATURES:

  • critical components engineered for the application
  • proper material selection
  • dedicated inspection plan for each and every project
  • detailed manufacturing recording book (MRB)
  • PLC redundancy. SIL 2 OR SIL3 control design
  • single/common skid design
  • certification of any component
  • skids designed and manufactured in compliance with main International and LocalStandards, i.e.:
    • API 619
    • ISO 10440-1
    • ISO 10440-2
    • ATEX
    • API R14
    • EN 60034
    • ASME VIII DIV. 1 AND U STAMP
    • PED
